Double Compression Tube Fittings
Design & Function

Double compression (Double ferrule) tube fittings provide a leak proof, torque free joints in all instrumentation & process tubing connections which will withstand high pressure, Impulse, Vacuum, Vibration and temperature. These features eliminates costly, hazardous leaks provide highest safety and maintenance free tubing joints.

All action in the fittings move axially, i.e. Tube is not twisted during assembly. Since no torque is transmitted from the fittings to the tubing, there is no initial strain, which might weaken the tubing. Each part in the fitting assembly is machined to most exact dimensional tolerance on CNC machines. Total quality management is practiced throughout the manufacturing process as per ISO standard to achieve best quality joints at all tubing end connections. Tube fitting assembly consist of four precision machined components namely body, nut, front ferrule and back ferrule.All you need to do is to insert the tube and tighten the nut by 1 turn from finger tight position. This action forces both front as well as back ferrule to move forward between nut and body, Back ferrule is driven against the rear taper of the front ferrule and swaged radially inward on the tube,thus holding the tube against vibration and mechanical pull due to pressure. Back ferrule also lift the front ferrule out to form a full faced seal on the taper surface of the body. Front ferrule also moves forward against the taper portion of the fitting body due to wedging action forces inward, gripping and subsequently sealing the front edge tightly on to the tubing.

Design Features

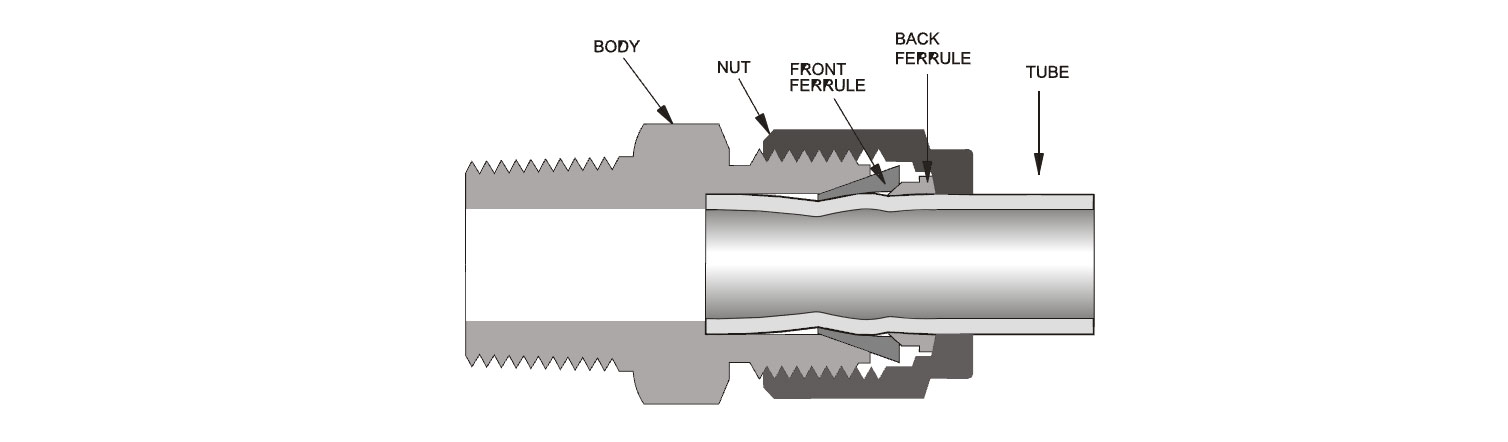

  • Double ferrule fitting consists of 4 parts for leak proof maintenance free joints.

  • 1 - Back ferrule dampens the tube circuit mechanical vibration through spring like action, also prevent carry over tightening torque from nut to front ferrule.

  • 2 - The front ferrule circumferentially seals the surface between tube and the fitting body. The front edge of the ferrule is pressed on to the tube so that pressure tight impression is formed

  • 3 - The nut is silver plated to avoid galling and give low assembly torque.

  • 4 - No Pre-Lubrication needed, also allows repeated make and remake
Other Features

  • 1 - Flare less design.

  • 2 - Available for metric and fractional (imperial inch size) tubes with choice of NPT/BSPT/BSP/SAE/ISO pipe threads.

  • 3 - Wide range of sizes and configurations..

  • 4 - Manufacture in wide range of material like Stainless Steel, Steel, Brass, Aluminum, Titanium, Hastalloy, Monel and other special alloys

  • 5 - All components of fittings are made of same material

  • 5 - Excellent make and remake life.

  • 6 - Interchangeable with leading international brands.

  • 7 - Suitable with thin or thick walled tubes..
  • 8 - Fittings are tested for high pressure, vacuum, impulse, vibration and temperature to ensure safely

Material Specifications And Standard

Material Barstock Forgings Designator
SS316/316L ASTMA276
ASMESA479
ASTMA182
ASMESA182
316/316L
CarbonSteel ASTMA105 ASTMA105 CS
Aluminum ASTMB211 ASTMB247 AL
Alloy400(Monel) ASTMB164
ASMESB164
ASTMB564
ASMESB564
M
Alloy600 ASTMB166
ASMESB166
ASTMB564
ASMESB564
A600
Alloy20 ASTMB473 ASTMB462 A20
AlloyC276
(Hastalloy)
ASTMB574 ASTMB564 H
Titanium ASTMB348 ASTMB381 TI
Brass ASTMB16
ASTMB453
ASTMB283 B
Identification of Fractional and Metric Tube Fittings

As there is marginal difference in nearest metric and fractional size of tubes, visually it is difficult to identify fitting tube sizes. Therefore step is provided on both body and nut for metric tube fittings as shown in following illustration.


Product Coding Syatem

Following example will show how to prepare product code.

1)Product Type

RU - Reducing Union
UN - Union
BU - Bulkhead Union etc.
2) Tube Size

INCHES METRIC
A - 1/8" P - 3mm
B - 3/16" Q - 6mm
C - 1/4" R - 8mm
E - 5/16" T - 10mm
F - 3/8" U - 12mm
G - 1/2" V - 16mm
H - 5/8" W - 20mm
J - 3/4" X - 25mm
K - 7/8"
L - 1"
3) Threading Size

INCHES SAE
A - 1/8" 1 = 7/16-20
B - 3/16" 2 = 9/16-18
C - 1/4" 3 = 5/16-24
E - 5/16" 4 = 3/4-16
F - 3/8" 5 = 7/8-14
G - 1/2" 6 = 1/2-20
H - 5/8" 7 = 1-1/16-12
J - 3/4" 8 = 1-5/16-12
K - 7/8" 9 = 1-3/16-12
L - 1"

Safety Precautions

  • Do not mix up parts from different manufactures
  • Select proper tube thickness as per working pressure requirement (refer table)
  • Usefully annealed tube (preferred hardness 70-75 RB), free from scratches,surface defects
  • While assembling always hold body firmly and rotate nut, do not turn body
  • Use proper thread sealant while assembling taper threads
  • While installing fitting near tube bends,leave sufficient straight length to allow tube to be bottomed the fitting
  • While tightening or loosening a fitting be sure that the system as not pressurized
  • Do not loosen the nut or pipe thread to bleed the system line


Pipe Thread Specification

THREAD TYPE NPT ISOP/BSP ISOT/BSPT SAE
REFERENCE
SPECIFICATION
ASME1.20.1 IS0228,B S2779,
IS07,Bs21
JISB0202
JISB0203
ASMEB1.1


Pressure Rating and Tubing Selection

Double and single compression SS Tube fittings are rated to the maximum working pressure of the tubing gas shown below. Therefor proper selection of tubing must be done while making safe leak free joint. Tube should be fully annealed, high quality stainless steel tubing. The preferred hardness is Rb70 or less. The tubing should be free from scratches, surface defects and suitable for bending.

Following rating is based on annealed seamless 304 or 316 SS tubing with ultimate tensile strength 517000 kPa and allowable working pressure load of 137800 kPa.



Seamles Tube Wall Thickness (SWG/Inch)

Maximum
Working
Pressure
inPSI
Tube
OD.
22
0.028
20
0.035
18
0.049
16
0.064
14
0.083
12
0.0104
1/4" 4000 5000 7500 10200
5/16"   4000 5800 8000
3/8"   3300 4800 6500
1/2"   2400 3500 4700 6200
5/8"     2900 4000 5200 6000
'3/4"     2400 3300 4200 4900
7/8"     2000 2800 3600 4200
1"       2400 3100 3600
NOTE : No allowance is made for corrosion or erosion,For welded tubing multiply above pressure rating by 0.80

UNION

Imperial Tubing Union
PART
NO
'T'TUBE
OD
A C D E
MIN
F
A/F
G
A/F
H
Body
UNA 1/8" 1.41 0.61 0.51 0.10 7/16" 7/16" 0.88
UNB 3/16" 1.48 0.64 0.65 0.13 7/16" 1/2" 0.95
UNC 1/4" 1.62 0.71 0.61 0.20 1/2" 9/16" 1.03
UNE 5/16" 1.70 0.74 0.65 0.26 9/16" 5/8" 1.11
UNF 3/8" 1.78 0.77 0.67 0.29 5/8" 11/16" 1.19
UNG 1/2" 2.03 0.87 0.91 0.42 13/16" 7/8" 1.22
UNH 5/8" 2.06 0.87 0.97 0.51 15/16" 1" 1.25
UNJ 3/4" 2.12 0.87 0.97 0.63 1-1/16" 1-1/8" 1.31
UNK 7/8" 2.18 0.87 1.03 0.73 1-1/4" 1-1/4" 1.37
UNL 1" 2.56 1.05 1.24 0.89 1-3/8" 1-1/2" 1.59
Metric Tubing Um
UNP 3 35.31 15.31 12.91 2.41 11.01 11.01 22.21
UNQ 6 41.01 17.71 15.31 4.81 14.01 14.01 26.21
UNR 8 43.21 18.61 16.21 6.31 14.01 16.01 28.21
UNT 10 46.21 19.51 17.21 7.71 17.01 19.01 31.01
UNU 12 51.21 22.01 23.01 9.51 20.61 22.01 31.01
UNV 16 52.31 22.01 24.41 12.71 24.01 25.41 31.81
UNW 20 55.01 22.01 26.11 15.91 30.01 32.01 34.81
UNX 25 65.01 26.51 31.21 21.81 35.01 38.01 40.41

UNION ELBOW

Imperial Tubing
PART
NO
'T'TUBE
OD
A C D E
MIN
F
A/F
G
A/F
H
Body
UEA 1/8" 0.89 0.61 0.51 0.10 1/2" 7/16" 0.62
UEB 3/16" 1.01 0.64 0.65 0.13 1/2" 1/2" 0.74
UEC 1/4" 1.07 0.71 0.61 0.20 9/16" 9/16" 0.77
UEE 5/16" 1.14 0.74 0.65 0.26 9/16" 5/8" 0.84
UEF 3/8" 1.21 0.77 0.67 0.29 5/8" 11/16" 0.91
UEG 1/2" 1.43 0.87 0.91 0.42 13/16" 7/8" 1.02
UEH 5/8" 1.51 0.87 0.97 0.51 15/16" 1" 1.10
UEJ 3/4" 1.57 0.87 0.97 0.63 1-1/16" 1-1/8" 1.17
UEK 7/8" 1.77 0.87 1.03 0.73 1-1/4" 1-1/4" 1.36
UEL 1" 1.94 1.05 1.24 0.89 1-3/8" 1-1/2" 1.45
Metric Tubing
UEP 3 22.31 15.31 12.91 2.41 11.01 11.01 15.71
UEQ 6 27.01 17.71 15.31 4.81 15.01 14.01 19.61
UER 8 28.81 18.61 16.21 6.31 15.01 16.01 21.31
UET 10 31.51 19.51 17.21 7.91 17.01 19.01 23.91
UEU 12 36.01 22.01 23.01 9.51 20.51 22.01 25.91
UEV 16 38.01 22.01 24.61 12.71 24.01 25.41 28.01
UEW 20 44.61 22.01 26.11 15.91 32.01 32.01 34.51
UEX 25 49.01 26.51 31.21 21.81 35.01 38.11 36.81

REDUCING UNION

Imperial Tubing
PART
NO
TUBE
OD
T'
TUBE
OD
Tx'
A C Cx D Dx E
MIN
F
A/F
G
NUT
GX
NUT
H
BODY
RUCA 1/4" 1/8" 1.53 0.71 0.61 0.61 0.51 0.10 1/2" 9/16" 7/16" 0.97
RUEA 5/16" 1/4" 1.67 0.74 0.71 0.65 0.61 0.20 9/16" 5/8" 9/16" 1.08
RUFA 3/8" 1/4' 1.71 0.77 0.71 0.67 0.61 0.20 5/8" 11/16" 9/16" 1.12
RUGA 1/2" 1/4" 1.86 0.87 0.71 0.91 0.61 0.20 13/16" 7/8" 9/16" 1.16
RUGF 1/2" 3/8" 1.91 0.87 0.77 0.91 0.67 0.29 13/16" 7/8" 11/16" 1.22
RUHA 5/8" 3/8" 1.95 0.87 0.77 0.97 0.67 0.29 15/16" 1" 11/16" 1.25
RUHG 5/8" 1/2" 2.06 0.87 0.87 0.97 0.91 0.42 15/16" 1" 7/8" 1.25
RUJF 3/4" 3/8" 2.01 0.87 0.87 0.97 0.67 0.29 1-1/16" 1-1/8" 11/16" 1.31
RUJG 3/4" 1/2" 2.12 0.87 0.87 0.97 0.91 0.42 1-1/16" 1-1/8" 7/8" 1.31
RUJH 3/4" 5/8" 2.12 0.87 0.87 0.97 0.97 0.51 1-1/16" 1-1/8" 15/16" 1.31
RULJ 1" 3/4" 2.39 1.05 0.87 1.24 0.97 0.63 1-3/8" 1-1/2" 1-1/8" 1.50
Metric Tubing
RUQP 6 3 38.61 17.71 15.31 15.31 12.91 2.41 15.1 15.01 11.01 24.61
RURQ 8 6 42.31 18.61 17.71 26.21 15.31 4.81 15.1 17.01 14.01 27.41
RUTQ 10 6 44.51 19.51 17.71 17.21 15.31 4.81 18.1 20.01 14.01 29.51
RUTR 10 8 45.11 19.51 18.61 17.21 16.21 6.31 18.1 20.01 16.01 30.01
RUUQ 12 6 47.01 22.01 17.71 23.01 15.31 4.81 20.7 22.01 14.01 29.51
RUUR 12 8 47.81 22.01 18.61 23.01 16.21 6.31 20.7 22.01 16.01 30.21
RUUT 12 10 48.71 22.01 19.51 23.01 17.21 7.91 20.7 22.01 19.01 31.01
RUVT 16 10 49.51 22.01 19.51 24.61 17.21 7.91 25.1 25.41 19.01 31.81
RUVU 16 12 52.01 22.01 22.01 24.61 23.01 9.51 25.1 25.41 22.01 31.81
RUXW 25 20 62.31 26.51 22.01 31.21 26.11 15.91 36.1 38.01 32.01 39.91

BULKHEAD UNION

Imperial Tubing BHU
PART
NO
TUBE
OD.
T'
A C D E F
A/F
G
A/F
H J K Panel
Hole
Size
BUA 1/8" 2.03 0.61 0.51 0.10 1/2" 7/16" 1.50 1.23 0.97 0.33
BUB 3/16" 2.12 0.64 0.65 0.13 7/16" 1/2" 1.59 1.26 1.00 0.39
BUC 1/4" 2.28 0.71 0.61 0.20 5/8" 9/16" 1.69 1.32 1.03 0.45
BUE 5/16" 2.40 0.74 0.65 0.26 11/16" 5/8" 1.81 1.41 1.12 0.52
BUF 3/8" 2.46 0.77 0.67 0.29 3/4" 11/16" 1.87 1.45 1.16 0.58
BUG 1/2" 2.81 0.87 0.91 0.42 15/16" 7/8" 2.00 1.65 1.25 0.77
BUH 5/8" 2.87 0.87 0.97 0.51 1-1/16" 1" 2.06 1.68 1.28 0.89
BUJ 3/4" 3.12 0.87 0.97 0.63 1-3/16" 1-1/8" 2.31 1.87 1.47 1.02
BUL 1" 3.78 1.05 1.24 0.89 1-5/8" 1-1/2" 2.81 2.26 1.78 1.33
Metric Tubing BHUm
BUP 3 51.31 15.31 12.91 2.41 12.71 11.01 38.11 31.21 24.61 8.31
BUQ 6 57.71 17.71 15.31 4.81 16.01 14.01 42.91 33.51 26.21 11.51
BUR 8 61.01 18.61 16.21 6.31 17.41 16.01 46.01 36.11 28.61 13.11
BUT 10 63.71 19.51 17.21 7.91 19.01 17.41 48.51 37.01 29.41 16.31
BUU 12 71.01 22.01 23.01 9.51 24.01 22.01 50.81 41.91 31.81 19.51
BUV 16 72.51 22.01 24.61 12.71 27.01 25.41 52.41 42.61 32.51 22.81
BUW 20 84.51 22.01 26.11 15.91 35.01 32.01 64.31 53.01 42.91 29.01
BUX 25 95.81 26.21 31.21 21.81 41.01 38.01 71.41 57.41 45.21 33.71

UNION TEE

Imperial Tubing
PART
NO
'T'TUBE
OD
A C D E Fx
A/F
G
A/F
H
Body
UTA 1/8" 0.89 0.61 0.51 0.1 1/2" 7/16" 0.62
UTB 3/16" 1.01 0.64 0.65 0.13 1/2" 1/2" 0.70
UTC 1/4" 1.07 0.71 0.61 0.20 9/16" 9/16" 0.77
UTE 5/16" 1.18 0.74 0.65 0.26 9/16" 5/8" 0.88
UTF 3/8" 1.20 0.77 0.66 0.29 5/8" 11/16" 0.91
UTG 1/2" 1.42 0.87 0.91 0.42 13/16" 7/8" 1.02
UTH 5/8" 1.51 0.87 0.97 0.51 15/16" 1" 1.13
UTJ 3/4" 1.57 0.87 0.97 0.63 1-1/16" 1-1/8" 1.17
UTK 7/8" 1.77 0.87 1.03 0.73 1-1/4" 1-1/4" 1.36
UTL 1" 1.94 1.05 1.24 0.89 1-3/8" 1-1/2" 1.45
Metric Tubing
UTP 3 22.31 15.31 12.71 2.41 12.71 11.01 15.71
UTQ 6 27.01 17.71 15.31 4.81 12.71 14.01 19.61
UTR 8 29.71 18.61 16.21 6.31 15.01 16.01 22.21
UTT 10 31.51 19.51 17.51 7.91 17.01 19.01 23.91
UTU 12 36.01 22.01 23.01 9.51 22.01 22.01 25.91
UTV 16 38.01 22.01 24.61 12.71 24.01 25.41 28.71
UTW 20 44.61 22.01 26.11 15.91 32.01 32.01 34.51
UTX 25 49.01 26.51 21.81 21.81 35.01 38.01 36.81

UNION CROSS

Imperial Tubing
PART
NO
'T'TUBE
OD
A C D E Fx
A/F
G
A/F
H
Body
UCA 1/8" 0.89 0.61 0.51 0.10 1/2" 7/16" 0.62
UCB 3/16" 1.01 0.64 0.65 0.13 1/2" 1/2" 0.70
UCC 1/4" 1.07 0.71 0.61 0.20 9/16" 9/16" 0.77
UCE 5/16" 1.18 0.74 0.65 0.26 9/16" 5/8" 0.88
UCF 3/8" 1.20 0.77 0.66 0.29 5/8" 11/16" 0.91
UCG 1/2" 1.42 0.87 0.91 0.42 13/16" 7/8" 1.02
UCH 5/8" 1.51 0.87 0.97 0.51 15/16" 1" 1.13
UCJ 3/4" 1.57 0.87 0.97 0.63 1-1/16" 1-1/8" 1.17
UCK 7/8" 1.77 0.87 1.03 0.73 1-1/4" 1-1/4" 1.36
UCL 1" 1.94 1.05 1.24 0.89 1-3/8" 1-1/2" 1.45
Metric Tubing
UCP 3 22.31 15.31 12.71 2.41 12.71 11.01 15.71
UCQ 6 27.01 17.71 15.31 4.81 12.71 14.01 19.61
UCR 8 29.71 18.61 16.21 6.31 15.01 16.01 22.21
UCT 10 31.51 19.51 17.51 7.91 17.01 19.01 23.91
UCU 12 36.01 22.01 23.01 9.51 22.01 22.01 25.91
UCV 16 38.01 22.01 24.61 12.71 24.01 25.41 28.71
UCW 20 44.61 22.01 26.11 15.91 32.01 32.01 34.51
UCX 25 49.01 26.51 21.81 21.81 35.01 38.01 36.81

MALE CONNECTOR

Imperial Tubing
PART
NO.
'T'TUBE
OD
N.P.T
'P'
A B C D E
MIN
F
A/F
G
A/F
H
Body
MCAA 1/8" 1/8" 1.21 0.39 0.61 0.51 0.09 1/2" 7/16" 0.94
MCAC 1/8" 1/4" 1.41 0.57 0.61 0.51 0.09 9/16" 7/16" 1.14
MCBA 3/16" 1/8" 1.24 0.39 0.64 0.54 0.12 1/2" 1/2" 0.97
MCBC 3/16" 1/4" 1.44 0.57 0.64 0.54 0.12 9/16" 1/2" 1.17
MCCA 1/4" 1/8" 1.30 0.39 0.71 0.61 0.19 1/2" 9/16" 1.00
MCCC 1/4" 1/4" 1.50 0.57 0.71 0.61 0.19 9/16" 9/16" 1.20
MCCF 1/4" 3/8" 1.52 0.57 0.71 0.61 0.19 11/16" 9/16" 1.22
MCCG 1/4" 1/2" 1.77 0.76 0.71 0.61 0.19 7/8" 9/16" 1.47
MCEC 5/16" 1/4" 1.52 0.57 0.74 0.65 0.25 9/16" 5/8" 1.23
MCFA 3/8" 1/8" 1.40 0.39 0.77 0.67 0.19 5/8" 11/16" 1.10
MCFC 3/8" 1/4" 1.58 0.57 0.77 0.67 0.28 5/8" 11/16" 1.28
MCFF 3/8" 3/8" 1.58 0.57 0.77 0.67 0.28 11/16" 11/16" 1.28
MCFG 3/8" 1/2" 1.83 0.76 0.77 0.67 0.28 7/8" 11/16" 1.53
MCGC 1/2" 1/4" 1.72 0.57 0.87 0.90 0.28 13/16" 7/8" 1.31
MCGF 1/2" 3/8" 1.72 0.57 0.87 0.90 0.38 13/16" 7/8" 1.31
MCCG 1/2" 1/2" 1.94 0.76 0.87 0.90 0.41 7/8" 7/8" 1.53
MCGJ 1/2" 3/4" 2.00 0.76 0.87 0.90 0.41 1-1/16" 7/8" 1.59
MCHF 5/8" 3/8" 1.75 0.57 0.87 0.97 0.38 13/16" 1" 1.34
MCHG 5/8" 1/2" 1.94 0.76 0.87 0.97 0.47 13/16" 1" 1.53
MCJG 3/4" 1/2" 2.00 0.76 0.87 0.97 0.47 1-1/16" 1-1/8" 1.59
MCJJ 3/4" 3/4" 2.00 0.76 0.87 0.97 0.62 1-1/16" 1-1/8" 1.59
MCJL 3/4" 1" 2.26 0.95 0.87 0.97 0.62 1-3/8" 1-1/8" 1.85
MCKJ 7/8" 3/4" 2.00 0.76 0.87 1.03 0.62 1-1/4" 1-1/4" 1.59
MCLJ 1" 3/4" 2.27 0.76 1.05 1.24 0.62 1-3/8" 1-1/2" 1.78
MCLL 1" 1" 2.45 0.95 1.05 1.24 0.88 1-3/8" 1-1/2" 1.97
Metric Tubing
MCPA 3 1/8" 30.51 9.71 15.31 12.91 2.41 12.71 12.71 23.91
MCPC 3 1/4" 35.61 14.21 15.31 12.91 2.41 14.01 12.71 29.01
MCQA 6 1/8" 32.81 9.71 17.71 15.31 4.81 14.01 14.01 25.41
MCQC 6 1/4" 38.01 14.21 17.71 15.31 4.81 14.01 14.01 30.51
MCQF 6 3/8" 38.41 14.21 17.71 15.31 4.81 17.01 14.01 31.01
MCQG 6 1/2" 44.71 19.01 17.71 15.31 4.81 22.01 14.01 37.31
MCRC 8 1/4" 38.71 14.21 18.61 16.21 6.31 14.01 16.01 31.41
MCRF 8 3/8" 39.21 14.21 18.61 16.21 6.31 17.01 16.01 31.81
MCRG 8 1/2" 45.61 19.01 18.61 16.21 6.31 22.01 16.01 38.11
MCTC 10 1/4" 41.01 14.21 19.51 17.21 7.11 19.01 19.01 33.31
MCTF 10 3/8" 41.01 14.21 19.51 17.21 7.91 19.01 19.01 33.31
MCTG 10 1/2" 46.51 19.01 19.51 17.21 7.91 22.01 19.01 38.91
MCUC 12 1/4" 43.41 14.21 22.01 22.81 7.11 20.51 22.01 33.31
MCUF 12 3/8" 43.41 14.21 22.01 22.81 9.51 20.51 22.01 33.31
MCUG 12 1/2" 49.01 19.01 22.01 22.81 9.51 22.01 22.01 38.91
MCVF 16 3/8" 44.11 14.21 22.01 24.41 9.51 24.01 25.01 34.11
MCVG 16 1/2" 49.01 19.01 22.01 24.41 11.91 24.01 25.01 39.01
MCVJ 16 3/4" 50.51 19.01 22.01 24.41 12.71 27.01 25.01 40.41
MCWG 20 1/2" 52.31 19.01 22.01 26.01 11.91 32.01 32.01 42.21
MCWJ 20 3/4" 52.31 23.91 22.01 26.01 15.91 32.01 32.01 42.21
MCXJ 25 3/4" 57.51 19.01 26.51 31.31 15.91 35.01 38.01 45.21
MCXL 25 1" 62.31 23.91 26.51 31.31 21.81 35.01 38.01 50.01

MALE CONNECTOR
Male Connector SAE/MS

PART
NO.
'T'TUBE
OD.
SAE/MS
Thread
Size
A B C D E
MIN
F
A/F
G
A/F
H
BODY
MCA1M 1/8" 7/16-20 1.25 0.37 0.61 0.51 0.10 9/16" 7/16" 0.99
MCA2M 1/8" 9/16-18 1.32 0.40 0.61 0.51 0.10 11/16" 7/16" 1.06
MCB1M 1/4" 7/16-20 1.35 0.37 0.71 0.61 0.20 9/16" 9/16" 1.06
MCB2M 1/4" 9/16-18 1.41 0.40 0.71 0.61 0.20 11/16" 9/16" 1.12
MCB4M 1/4" 3/4-16 1.49 0.45 0.71 0.61 0.20 7/8" 9/16" 1.20
MCB5M 1/4" 7/8-14 1.61 0.51 0.71 0.61 0.20 1" 9/16" 1.48
MCE6M 5/16" 1/2-20 1.38 0.37 0.74 0.65 0.26 5/8" 5/8" 1.09
MCC1M 3/8" 7/16-20 1.41 0.37 0.77 0.67 0.21 5/8" 11/16" 1.12
MCC2M 3/8" 9/16-18 1.47 0.40 0.77 0.67 0.29 11/16" 11/16" 1.18
MCC4M 3/8" 3/4-16 1.55 0.45 0.77 0.67 0.29 7/8" 11/16" 1.26
MCC5M 3/8" 7/8-14 1.67 0.51 0.77 0.67 0.29 1" 11/16" 1.38
MCE2M 1/2" 9/16-18 1.55 0.40 0.87 0.91 0.29 13/16" 7/8" 1.15
MCE4M 1/2" 3/4-16 1.66 0.45 0.87 0.91 0.42 7/8" 7/8" 1.26
MCE5M 1/2" 7/8-14 1.78 0.51 0.87 0.91 0.42 1" 7/8" 1.38
MCE7M 1/2" 11/16-12 1.94 0.60 0.87 0.91 0.42 1-1/4" 7/8" 1.54
MCH4M 5/8" 3/4-16 1.66 0.45 0.87 0.97 0.43 15/16" 1" 1.26
MCH5M 5/8" 7/8-14 179 0.51 0.87 0.97 0.51 1" 1" 1.39
MCF4M 3/4" 3/4-16 1.82 0.45 0.87 0.97 0.43 1-1/16" 1-1/8" 1.42
MCF7M 3/4" 11/16-12 1.94 0.60 0.87 0.97 0.63 1-1/4" 1-1/8" 1.54
MCL7M 1" 11/16-12 2.11 0.60 1.05 1.24 0.67 1-3/8" 1-1/2" 1.63
MCL8M 1" 15/16-12 2.15 0.60 1.05 1.24 0.89 1-1/2" 1-1/2" 1.67

Male Connector O Seal Straight Thread

PART
NO.
'T'TUBE
OD.
Pipe
Thread
Size
A B C D E
MIN
F
A/F
G
A/F
H
BODY
MCA3M 1/8" 5/16-24 1.30 0.35 0.61 0.51 0.10 9/16" 7/16" 1.04
MCC1M 1/4" 7/16-20 1.52 0.42 0.71 0.61 0.20 3/4" 9/16" 1.23
MCE6M 5/16" 1/2-20 1.61 0.45 0.74 0.65 0.26 7/8" 5/8" 1.32
MCF2M 3/8" 9/16-18 1.68 0.48 0.77 0.67 0.29 15/16" 11/16" 1.39
MCG4M 1/2" 3/4-16 1.82 0.48 0.87 0.91 0.42 11/8" 7/8" 1.42
MCJ7M 3/4" 11/16-12 2.07 0.57 0.87 0.97 0.63 11/2" 11/8" 1.67
MCL8M 1" 15/16-12 2.30 0.57 1.05 1.24 1.89 13/4" 11/2" 1.82

FEMALE CONNECTOR

Imperial Tubing
PART
NO.
'T'TUBE
OD
N.P.T
'P'
A B C D E
MIN
F
A/F
G
A/F
H
Body
FCAA 1/8" 1/8" 1.14 0.40 0.61 0.51 0.1 9/16" 7/16" 0.88
FCAC 1/8" 1/4" 1.33 0.60 0.61 0.51 0.1 3/4" 7/16" 1.07
FCBA 3/16" 1/8" 1.18 0.40 0.64 0.55 0.13 9/16" 1/2" 0.92
FCCA 1/4" 1/8" 1.24 0.40 0.71 0.61 0.2 9/16" 9/16" 0.95
FCCC 1/4" 1/4" 1.42 0.60 0.71 0.61 0.2 3/4" 9/16" 1.13
FCCF 1/4" 3/8" 1.49 0.60 0.71 0.61 0.2 7/8" 9/16" 1.20
FCCG 1/4" 1/2" 1.68 0.79 0.71 0.61 0.2 1-1/16" 9/16" 1.39
FCEA 5/16" 1/8" 1.27 0.40 0.74 0.65 0.26 9/16" 5/8" 0.98
FCEC 5/16" 1/4" 1.46 0.60 0.74 0.65 0.26 3/4" 5/8" 1.17
FCFC 3/8" 1/4" 1.49 0.60 0.77 0.67 0.29 3/4" 11/16" 1.20
FCFF 3/8" 3/8" 1.55 0.60 0.77 0.67 0.29 7/8" 11/16" 1.26
FCFG 3/8" 1/2" 1.74 0.79 0.77 0.67 0.29 1-1/16" 11/16" 1.45
FCGC 1/2" 1/4" 1.60 0.60 0.87 0.91 0.42 13/16" 7/8" 1.20
FCGF 1/2" 3/8" 1.66 0.60 0.87 0.91 0.42 7/8" 7/8" 1.26
FCGG 1/2" 1/2" 1.85 0.79 0.87 0.91 0.42 1-1/16" 7/8" 1.45
FCHF 5/8" 3/8" 1.66 0.60 0.87 0.97 0.51 15/16" 1" 1.26
FCHG 5/8" 1/2" 1.85 0.79 0.87 0.97 0.51 1-1/16" 1" 1.45
FCHJ 5/8" 3/4" 1.91 0.82 0.87 0.97 0.51 1-1/4" 1" 1.51
FCJG 3/4" 1/2" 1.85 0.79 0.87 0.97 0.63 1-1/16" 1-1/8" 1.45
FCJJ 3/4" 3/4" 2.91 0.82 0.87 0.97 0.63 1-1/4" 1-1/8" 1.51
FCKJ 7/8" 3/4" 2.97 0.82 0.87 1.03 0.73 1-1/4" 1-1/4" 1.57
FCLJ 1" 3/4" 2.11 0.82 1.05 1.24 0.89 1-3/8" 1-1/2" 1.63
FCLL 1" 1" 2.46 0.01 1.05 1.24 0.89 1-5/8" 1-1/2" 1.98
Metric Tubing
FCPA 3 1/8" 28.71 9.71 15.31 12.91 2.41 14.01 12.71 22.11
FCPC 3 1/4" 34.01 14.21 15.31 12.91 2.41 19.01 12.71 27.01
FCQA 6 1/8" 31.21 9.71 17.71 15.31 4.81 14.01 14.01 23.91
FCQC 6 1/4" 35.81 14.21 17.71 15.31 4.81 19.01 14.01 28.61
FCQF 6 3/8" 37.61 14.21 17.71 15.31 4.81 22.01 14.01 30.21
FCQG 6 1/2" 42.51 19.01 17.71 15.31 4.81 27.01 14.01 35.11
FCRC 8 1/4" 37.01 14.21 18.61 16.21 6.31 19.01 16.01 29.51
FCRF 8 3/8" 38.51 14.21 18.61 16.21 6.31 22.01 16.01 31.01
FCRG 8 1/2" 43.31 19.01 18.61 16.21 6.31 27.01 16.01 35.81
FCTC 10 1/4" 37.81 14.21 19.51 17.21 7.11 19.01 19.01 30.51
FCTF 10 3/8" 39.41 14.21 19.51 17.21 7.91 22.01 19.01 31.81
FCTG 10 1/2" 44.21 19.01 19.51 17.21 7.91 27.01 19.01 36.61
FCUC 12 1/4" 40.31 14.21 22.01 22.81 9.51 20.51 22.01 30.21
FCUF 12 3/8" 42.91 14.21 22.01 22.81 9.51 22.01 22.01 31.81
FCUG 12 1/2" 46.71 19.01 22.01 22.81 9.51 27.01 22.01 36.61
FCVG 16 1/2" 46.91 19.01 22.01 24.41 12.71 27.01 25.41 36.61
FCWJ 20 3/4" 50.01 19.01 22.01 26.01 15.91 32.01 32.01 39.61
FCXJ 25 3/4" 53.41 19.01 26.51 31.31 15.91 36.01 38.01 41.21
FCXL 25 1" 62.31 23.91 26.51 31.31 21.91 41.01 38.01 50.01

MALE BULKHEAD CONNECTOR

Imperial Tubing
PART
NO
'T'TUBE
OD
'T'
NPT
'P'
A H
Body
C D E
MIN
F
A/F
B Panel
Hole
Size
Max
Panel
Thk
BCMAA 1/8" 1/8" 1.84 1.58 0.98 0.51 0.1 1/2" 0.39 21/64" 0.51
BCMCA 1/4" 1/8" 1.96 1.67 1.04 0.61 0.2 5/8" 0.39 29/64" 0.41
BCMCC 1/4" 1/4" 2.14 1.85 1.04 0.61 0.2 5/4" 0.57 29/64" 0.41
BCMFC 3/8" 1/4" 2.27 1.98 1.17 0.67 0.29 3/4" 0.57 37/64" 0.45
BCMFF 3/8" 3/8" 2.27 1.98 1.17 0.67 0.29 3/4" 0.57 37/64" 0.45
BCMFG 3/8" 1/2" 2.52 2.23 1.17 0.67 0.29 7/8" 0.76 37/64" 0.45
BCMGF 1/2" 3/8" 2.50 3.00 1.26 0.91 0.39 15/16" 0.57 49/64" 0.51
BCMGG 1/2" 1/2" 2.72 2.32 1.26 0.91 0.42 15/16" 0.76 49/64" 0.51
BCMJJ 3/4" 3/4" 3.01 2.61 1.48 0.97 0.63 1-3/16" 0.76 1-1/64" 0.67
BCMLL 1" 1" 3.68 3.20 1.79 1.24 1.89 1-5/8" 0.95 1-21/64" 0.76
Metric Tubing
BCMQC 6 1/4" 53.61 46.21 26.21 15.31 4.81 16.01 14.01 11.51 10.21
BCMUG 12 1/2" 68.81 58.71 31.81 22.81 9.51 24.01 19.01 19.51 12.71

FEMALE BULKHEAD CONNECTOR

Imperial Tubing
PART
NO
'T'TUBE
OD
'T'
NPT
'P'
A H
Body
C D E
MIN
F
A/F
B Panel
Hole
Size
Max
Panel
Thk
BCFAA 1/8" 1/8" 1.77 1.51 0.98 0.51 0.1 9/16" 0.42 21/64" 0.51
BCFCA 1/4" 1/8" 1.86 1.57 1.04 0.61 0.2 5/8" 0.42 29/64" 0.41
BCFCC 1/4" 1/4" 2.05 1.76 1.04 0.61 0.2 3/4" 0.60 29/64" 0.41
BCFFC 3/8" 1/4" 2.18 1.89 1.17 0.67 0.29 3/4" 0.60 37/64" 0.45
BCFGF 1/2" 3/8" 2.44 2.04 1.26 0.91 0.39 15/16" 0.60 49/64" 0.51
BCFGG 1/2" 1/2" 2.63 2.23 1.26 0.91 0.42 1-1/16" 0.79 49/64" 0.51
Metric Tubing
BCFQC 6 1/4" 51.81 44.41 26.21 15.31 4.81 19.01 15.01 11.51 10.21
BCFUG 12 1/2" 66.51 56.41 31.81 22.81 9.51 27.01 19.81 19.51 12.71

MALE ELBOW

Imperial Tubing
PART
NO.
'T'TUBE
OD
N.P.T
'P'
A B C D E
MIN
F
A/F
G
A/F
Hx H
Body
MEAA 1/8" 1/8" 0.98 0.39 0.61 0.51 0.1 1/2" 7/16" 0.75 0.72
MEAC 1/8" 1/4" 0.98 0.57 0.61 0.51 0.1 9/16" 7/16" 0.99 0.72
MEBC 3/16" 1/8" 1.01 0.39 0.64 0.55 0.13 1/2" 1/2" 0.75 0.75
MECA 1/4" 1/8" 1.14 0.39 0.71 0.61 0.2 9/16" 9/16" 0.86 0.85
MECC 1/4" 1/4" 1.14 0.57 0.71 0.61 0.2 9/16" 9/16" 0.99 0.85
MECF 1/4" 3/8" 1.18 0.57 0.71 0.61 0.2 11/16" 9/16" 1.04 0.89
MECG 1/4" 1/2" 1.30 0.76 0.71 0.61 0.2 7/8" 9/16" 1.31 1.01
MEEA 5/16" 1/8" 1.14 0.39 0.74 0.74 0.2 9/16" 5/8" 0.86 0.85
MEEC 5/16" 1/4" 1.14 0.57 0.74 0.74 0.26 9/16" 5/8" 0.99 0.85
MEFC 3/8" 1/4" 1.21 0.57 0.77 0.67 0.29 9/16" 11/16" 1.01 0.92
MEFF 3/8" 3/8" 1.24 0.57 0.77 0.67 0.29 11/16" 11/16" 1.04 0.95
MEFG 3/8" 1/2" 1.36 0.76 0.77 0.67 0.29 7/8" 11/16" 1.31 1.07
MEGC 1/2" 1/4" 1.43 0.57 0.87 0.91 0.29 13/16" 7/8" 1.12 1.03
MEGF 1/2" 3/8" 1.43 0.57 0.87 0.91 0.39 13/16" 7/8" 1.12 1.03
MEGG 1/2" 1/2" 1.43 0.76 0.87 0.91 0.42 7/8" 7/8" 1.31 1.03
MEHF 5/8" 3/8" 1.47 0.76 0.87 0.97 0.39 15/16" 1" 1.20 1.07
MEHG 5/8" 1/2" 1.47 0.76 0.87 0.97 0.48 15/16" 1" 1.39 1.07
MEHJ 5/8" 3/4" 1.58 0.76 0.87 0.97 0.51 1-1/8" 1" 1.46 1.18
MEJG 3/4" 1/2" 1.58 0.76 0.87 0.97 0.47 1-1/8" 1-1/8" 1.46 1.18
MEJJ 3/4" 3/4" 1.58 0.76 0.87 0.97 0.63 1-1/8" 1-1/8" 1.46 1.18
MEKJ 7/8" 3/4" 1.77 0.76 0.87 1.03 0.63 1-1/4" 1-1/4" 1.65 1.37
MELJ 1" 3/4" 1.93 0.76 1.05 1.24 0.64 1-3/8" 1-1/2" 1.65 1.46
MELL 1" 1" 1.93 0.95 1.05 1.24 0.89 1-3/8" 1-1/2" 1.84 1.46
Metric Size Tubing
MEPA 3 1/8" 24.7 9.71 15.31 12.91 2.41 12.71 11.01 18.81 18.01
MEPC 3 1/4" 24.7 14.21 15.31 12.91 7.11 12.71 11.01 25.01 18.01
MEQA 6 1/8" 28.8 9.71 17.71 15.31 4.81 14.01 14.01 21.51 21.31
MEQC 6 1/4" 28.8 14.21 17.71 15.31 4.81 14.01 14.01 25.01 21.31
MEQF 6 3/8" 29.9 14.21 17.71 15.31 4.81 17.01 14.01 26.21 22.41
MEQG 6 1/2" 33.0 19.01 17.71 15.31 4.81 22.01 14.01 33.01 25.51
MERA 8 1/8" 28.9 9.71 18.61 16.21 4.81 14.01 16.01 21.51 21.31
MERC 8 1/4" 28.9 14.21 18.61 16.21 6.31 14.01 16.01 25.01 21.31
MERF 8 3/8" 30.7 14.21 18.61 16.21 6.31 17.01 16.01 26.21 23.11
MERG 8 1/2" 32.7 19.01 18.61 16.21 6.31 22.01 14.01 33.01 25.11
METC 10 1/4" 31.6 14.21 19.51 17.21 7.11 17.01 19.01 26.21 23.91
METF 10 3/8" 31.6 14.21 19.51 17.21 7.91 17.01 19.01 26.21 23.91
METG 10 1/2" 33.6 19.01 19.51 17.21 7.91 22.01 19.01 33.01 25.91
MEUF 12 3/8" 36.1 14.21 22.01 22.81 9.51 20.51 22.01 28.21 25.91
MEUG 12 1/2" 36.1 19.01 22.01 22.81 9.51 22.01 22.01 33.01 25.91
MEVG 16 1/2" 37.2 19.01 22.01 24.41 12.71 24.01 25.01 35.11 27.01
MEWJ 20 3/4" 44.7 19.01 22.01 26.01 15.91 32.01 32.01 41.71 34.51
MEXJ 25 3/4" 49.2 19.01 26.51 31.31 15.91 36.01 38.11 41.71 36.81
MEXL 25 1" 49.2 23.81 26.51 31.31 21.81 36.01 38.11 46.51 36.81

FEMALE ELBOW

Imperial Tubing
PART
NO.
'T'TUBE
OD
N.P.T
FEMALE
'P'
A B C D E
MIN
Fx
A/F
Gx
A/F
Hy Hx
Body
FEAA 1/8" 1/8" 0.98 0.40 0.61 0.51 0.1 9/16" 7/16" 0.76 0.72
FEAC 1/8" 1/4" 1.09 0.60 0.61 0.51 0.1 3/4" 7/16" 0.89 0.83
FECA 1/4" 1/8" 1.07 0.40 0.71 0.61 0.2 9/16" 9/16" 0.76 0.78
FECC 1/4" 1/4" 1.18 0.60 0.71 0.61 0.2 3/4" 9/16" 0.89 0.89
FECF 1/4" 3/8" 1.26 0.60 0.71 0.61 0.2 7/8" 9/16" 0.89 0.96
FECG 1/4" 1/2" 1.37 0.79 0.71 0.61 0.2 1-1/16" 9/16" 1.13 1.08
FEHC 5/16" 1/4" 1.21 0.60 0.74 0.65 0.26 3/4" 5/8" 0.89 0.92
FEFC 3/8" 1/4" 1.24 0.60 0.77 0.67 0.29 3/4" 11/16" 0.89 0.95
FEFF 3/8" 3/8" 1.32 0.60 0.77 0.67 0.29 7/8" 11/16" 0.89 1.03
FEFG 3/8" 1/2" 1.43 0.79 0.77 0.67 0.29 1-1/16" 11/16" 1.13 1.14
FEGC 1/2" 1/4" 1.43 0.60 0.87 0.91 0.42 13/16" 7/8" 0.89 1.03
FECG 1/2" 3/8" 1.43 0.60 0.87 0.91 0.42 7/8" 7/8" 0.89 1.03
FECC 1/2" 1/2" 1.54 0.79 0.87 0.91 0.42 1-1/16" 7/8" 1.13 1.14
FEHC 5/8" 1/2" 1.58 0.79 0.87 0.97 0.51 1-1/16" 1" 1.13 1.18
FEJC 3/4" 1/2" 1.58 0.79 0.87 0.97 0.63 1-1/16" 1-1/8" 1.13 1.18
FEJJ 3/4" 3/4" 1.77 0.82 0.87 0.97 0.63 1-1/4" 1-1/8" 1.26 1.37
Metric Tubing
FEPA 3 1/8" 24.7 9.71 15.31 12.91 2.41 14.01 11.01 19.01 18.01
FEPC 3 1/4" 27.1 14.21 15.31 12.91 2.41 19.01 11.01 22.41 20.81
FEQA 6 1/8" 27.1 9.71 17.71 15.31 4.81 14.01 14.01 19.01 19.61
FEQC 6 1/4" 29.9 14.21 17.71 15.31 4.81 19.01 14.01 22.41 22.41
FEQF 6 3/8" 31.8 14.21 17.71 15.31 4.81 22.01 14.01 22.41 24.41
FEQG 6 1/2" 34.7 19.01 17.71 15.31 4.81 27.01 14.01 28.41 27.21
FERC 8 1/4" 30.7 14.21 18.61 16.21 6.31 19.01 16.01 22.41 23.11
FETC 10 1/4" 33.6 14.21 19.51 17.21 7.11 19.01 19.01 22.41 25.91
FEUC 12 1/4" 36.1 14.21 22.01 22.91 9.51 20.51 22.01 22.41 25.91
FEUF 12 3/8" 36.1 14.21 22.01 22.91 9.51 22.01 22.01 22.41 25.91
FEUG 12 1/2" 38.9 19.01 22.01 22.91 9.51 27.01 22.01 28.41 28.71
FEVG 16 1/2" 39.6 19.01 22.01 24.41 12.71 27.01 25.01 28.41 29.71

450 MALE ELBOW

Imperial Tubing
PART
NO.
'T'TUBE
OD
'T'
N.P.T
'P'
A B C D E
MIN
F
A/F
G
A/F
Hx H
Body
45IMEAA 1/8" 1/8" 0.98 0.39 0.61 0.51 0.1 9/16" 7/16" 0.60 0.66
45IMECA 1/4" 1/8" 0.98 0.39 0.71 0.61 0.2 9/16" 9/16" 0.69 0.66
45IMECC 1/4" 1/4" 0.98 0.57 0.71 0.61 0.2 9/16" 9/16" 0.69 0.84
45IMEEA 5/16" 1/8" 0.98 0.39 0.74 0.65 0.2 9/16" 5/8" 0.67 0.66
45IMEFA 3/8" 1/8" 1.11 0.39 0.77 0.67 0.2 9/16" 11/16" 0.82 0.73
45IMEFC 3/8" 1/4" 1.11 0.57 0.77 0.67 0.29 5/8" 11/16" 0.82 0.91
45IMEFF 3/8" 3/8" 1.16 0.57 0.77 0.67 0.29 11/16" 11/16" 0.87 0.96
45IMEGF 1/2" 3/8" 1.27 0.57 0.87 0.91 0.39 13/16" 7/8" 0.87 0.96
45IMEGG 1/2" 1/2" 1.27 0.76 0.87 0.91 0.42 7/8" 7/8" 0.87 1.15
45IMEHG 5/8" 1/2" 1.35 0.76 0.87 0.97 0.48 15/16" 1" 0.82 1.18
45IMEJJ 3/4" 3/4" 1.35 0.76 0.87 0.97 0.63 1-1/8" 1-1/8" 0.95 1.23
45IMEKJ 7/8" 3/4" 1.60 0.76 0.87 1.03 0.63 1-1/4" 1-1/4" 1.37 1.28
45IMELL 1" 1" 1.60 0.95 1.05 1.24 0.89 1-3/8" 1-1/2" 1.12 1.50

MALE BRANCH TEE

Imperial Tubing
PART
NO.
'T'TUBE
OD
N.P.T
'P'
A B C D E
MIN
F
A/F
G
A/F
Hy Hx
Body
BTMAA 1/8" 1/8" 0.94 0.39 0.61 0.51 0.1 1/2" 7/16" 0.71 0.68
BTMAC 1/8" 1/4" 0.98 0.57 0.61 0.51 0.1 9/16" 7/16" 0.93 0.72
BTMCA 1/4" 1/8" 1.07 0.39 0.71 0.61 0.2 1/2" 9/16" 0.75 0.78
BTMCC 1/4" 1/4" 1.07 0.57 0.71 0.61 0.2 9/16" 9/16" 0.93 0.78
BTMEC 5/16" 1/4" 1.18 0.57 0.74 0.65 0.26 9/16" 5/8" 0.93 0.89
BTMFC 3/8" 1/4" 1.21 0.57 0.77 0.67 0.29 9/16" 11/16" 1.01 0.92
BTMFF 3/8" 3/8" 1.32 0.57 0.77 0.67 0.29 11/16" 11/16" 1.12 1.03
BTMGF 1/2" 3/8" 1.43 0.57 0.87 0.91 0.39 13/16" 7/8" 1.12 1.03
BTMGG 1/2" 1/2" 1.43 0.76 0.87 0.91 0.42 7/8" 7/8" 1.31 1.03
BTMHG 5/8" 1/2" 1.54 0.76 0.87 0.97 0.48 15/16" 1" 1.42 1.14
BTMJJ 3/4" 3/4" 1.58 0.76 0.87 0.97 0.63 1-1/16" 1-1/8" 1.46 1.18
Metric Tubing
BTMPA 3 1/8" 23.61 9.71 15.31 12.91 2.41 12.71 11.01 17.81 17.01
BTMPC 3 1/4" 23.61 14.21 15.31 12.91 2.41 14.01 11.01 23.41 18.01
BTMQA 6 1/8" 26.91 9.71 17.71 15.4 4.81 12.71 14.01 18.81 19.61
BTMQC 6 1/4" 26.91 14.21 17.71 15.4 4.81 14.01 14.01 23.41 19.61
BTMRA 8 1/8" 29.81 9.71 18.61 16.3 4.81 14.01 16.01 19.01 22.41
BTMRC 8 1/4" 29.81 14.21 18.61 16.3 6.31 14.01 16.01 23.41 22.41
BTMTC 10 1/4" 33.51 14.21 19.51 17.3 7.11 17.01 19.01 28.21 25.91
BTMTF 10 3/8" 33.51 14.21 19.51 17.3 7.91 17.01 19.01 28.21 25.91
BTMUF 12 3/8" 36.01 14.21 22.01 22.9 9.51 20.51 22.01 28.21 25.91
BTMUG 12 1/2" 36.01 19.01 22.01 22.9 9.51 22.01 22.01 33.01 25.91
BTMVG 16 1/2" 38.81 19.01 22.01 24.5 12.71 24.01 25.01 35.81 28.71

MALE RUN TEE

Imperial Tubing
PART
NO.
'T'TUBE
OD
N.P.T
'P'
A B C D E
MIN
F
A/F
G
A/F
Hy Hx
Body
RTMAA 1/8" 1/8" 0.94 0.39 0.61 0.51 0.1 1/2" 7/16" 0.71 0.68
RTMAC 1/8" 1/4" 0.98 0.57 0.61 0.51 0.1 9/16" 7/16" 0.93 0.72
RTMCA 1/4" 1/8" 1.07 0.39 0.71 0.61 0.2 1/2" 9/16" 0.75 0.78
RTMCC 1/4" 1/4" 1.07 0.57 0.71 0.61 0.2 9/16" 9/16" 0.93 0.78
RTMEC 5/16" 1/4" 1.18 0.57 0.74 0.65 0.26 9/16" 5/8" 0.93 0.89
RTMFC 3/8" 1/4" 1.21 0.57 0.77 0.67 0.29 9/16" 11/16" 1.01 0.92
RTMFF 3/8" 3/8" 1.32 0.57 0.77 0.67 0.29 11/16" 11/16" 1.12 1.03
RTMGF 1/2" 3/8" 1.43 0.57 0.87 0.91 0.39 13/16" 7/8" 1.12 1.03
RTMGG 1/2" 1/2" 1.43 0.76 0.87 0.91 0.42 7/8" 7/8" 1.31 1.03
RTMHG 5/8" 1/2" 1.54 0.76 0.87 0.97 0.48 15/16" 1" 1.42 1.14
RTMJJ 3/4" 3/4" 1.58 0.76 0.87 0.97 0.63 1-1/16" 1-1/8" 1.46 1.18
Metric Tubing
RTMPA 3 1/8" 23.61 9.71 15.31 12.91 2.41 12.71 11.01 17.81 17.01
RTMOC 3 1/4" 23.61 14.21 15.31 12.91 2.41 14.01 11.01 23.41 18.01
RTMQA 6 1/8" 26.91 9.71 17.71 15.4 4.81 12.71 14.01 18.81 19.61
RTMQC 6 1/4" 26.91 14.21 17.71 15.4 4.81 14.01 14.01 23.41 19.61
RTMRA 8 1/8" 29.81 9.71 18.61 16.3 4.81 14.01 16.01 19.01 22.41
RTMRC 8 1/4" 29.81 14.21 18.61 16.3 6.31 14.01 16.01 23.41 22.41
RTMTC 10 1/4" 33.51 14.21 19.51 17.3 7.11 17.01 19.01 28.21 25.91
RTMTF 10 3/8" 33.51 14.21 19.51 17.3 7.91 17.01 19.01 28.21 25.91
RTMUF 12 3/8" 36.01 14.21 22.01 22.9 9.51 20.51 22.01 28.21 25.91
RTMUG 12 1/2" 36.01 19.01 22.01 22.9 9.51 22.01 22.01 33.01 25.91
RTMVG 16 1/2" 38.81 19.01 22.01 24.5 12.71 24.01 25.01 35.81 28.71

FEMALE BRANCH TEE

Imperial Tubing
PART
NO.
'T'TUBE
OD
N.P.T
'P'
A B C D E
MIN
F
A/F
G
A/F
Hy Hx
Body
BTFAA 1/8" 1/8" 0.98 0.40 0.61 0.51 0.1 9/16" 7/16" 0.76 0.72
BTFCA 1/4" 1/8" 1.07 0.40 0.71 0.61 0.2 9/16" 9/16" 0.76 0.78
BTFCC 1/4" 1/4" 1.18 0.60 0.71 0.61 0.2 3/4" 9/16" 0.89 0.89
BTFEC 5/16" 1/4" 1.21 0.60 0.74 0.65 0.26 3/4" 5/8" 0.89 0.91
BTFFC 3/8" 1/4" 1.24 0.60 0.77 0.67 0.29 3/4" 11/16" 0.89 0.94
BTFFF 3/8" 3/8" 1.32 0.60 0.77 0.67 0.29 7/8" 11/16" 0.89 1.03
BTFGC 1/2" 1/4" 1.43 0.60 0.87 0.91 0.42 13/16" 7/8" 0.89 1.03
BTFGF 1/2" 3/8" 1.43 0.60 0.87 0.91 0.42 7/8" 7/8" 0.89 1.03
BTFGG 1/2" 1/2" 1.54 0.79 0.87 0.91 0.42 1-1/16" 7/8" 1.13 1.14
BTFHG 5/8" 1/2" 1.58 0.79 0.87 0.97 0.51 1-1/16" 1" 1.13 1.18
BTFJG 3/4" 1/2" 1.58 0.79 0.87 0.97 0.63 1-1/16" 1-1/8" 1.13 1.18
BTFJJ 3/4" 3/4" 1.77 0.82 0.87 0.97 0.63 1-1/4" 1-1/8" 1.26 1.37
Metric Tubing
BTFQA 6 1/8" 27.1 9.71 17.8 15.4 4.9 14.01 14.01 19.11 19.61
BTFQC 6 1/4" 29.9 14.3 17.8 15.4 4.9 19.01 14.01 22.51 22.41
BTFRA 8 1/8" 29.8 10.5 18.7 16.3 6.4 15.01 16.01 22.51 19.61
BTFRC 8 1/4" 30.7 14.3 18.7 16.3 6.4 19.01 16.01 22.51 23.11
BTFTC 10 1/4" 33.6 14.3 19.6 17.3 7.1 19.01 19.01 22.51 25.91
BTFUC 12 1/4" 36.1 14.3 22.1 22.9 9.6 20.51 22.01 22.51 25.91
BTFUG 12 3/8" 36.1 14.3 22.1 22.9 9.6 22.01 22.01 22.51 25.91
BTFVG 16 1/2" 39.6 19.1 22.1 24.5 12.8 27.01 25.01 28.51 29.71

FEMALE RUN TEE

Imperial Tubing
PART
NO.
'T'TUBE
OD
N.P.T
'P'
A B C D E
MIN
F
A/F
G
A/F
Hy Hx
Body
RTFAA 1/8" 1/8" 0.98 0.40 0.61 0.51 0.1 9/16" 7/16" 0.76 0.72
RTFCA 1/4" 1/8" 1.07 0.40 0.71 0.61 0.2 9/16" 9/16" 0.76 0.78
RTFCC 1/4" 1/4" 1.18 0.60 0.71 0.61 0.2 3/4" 9/16" 0.89 0.89
RTFEC 5/16" 1/4" 1.21 0.60 0.74 0.65 0.26 3/4" 5/8" 0.89 0.91
RTFFC 3/8" 1/4" 1.24 0.60 0.77 0.67 0.29 3/4" 11/16" 0.89 0.94
RTFFF 3/8" 3/8" 1.32 0.60 0.77 0.67 0.29 7/8" 11/16" 0.89 1.03
RTFGC 1/2" 1/4" 1.43 0.60 0.87 0.91 0.42 13/16" 7/8" 0.89 1.03
RTFGF 1/2" 3/8" 1.43 0.60 0.87 0.91 0.42 7/8" 7/8" 0.89 1.03
RTFGG 1/2" 1/2" 1.54 0.79 0.87 0.91 0.42 1-1/16" 7/8" 1.13 1.14
RTFHG 5/8" 1/2" 1.58 0.79 0.87 0.97 0.51 1-1/16" 1" 1.13 1.18
RTFJG 3/4" 1/2" 1.58 0.79 0.87 0.97 0.63 1-1/16" 1-1/8" 1.13 1.18
RTFJJ 3/4" 3/4" 1.77 0.82 0.87 0.97 0.63 1-1/4" 1-1/8" 1.26 1.37
Metric Tubing
RTFQA 6 1/8" 27.1 9.71 17.8 15.4 4.9 14.1 14.1 19.1 19.7
RTFQC 6 1/4" 29.9 14.3 17.8 15.4 4.9 19.1 14.1 22.5 22.5
RTFRA 8 1/8" 29.8 10.5 18.7 16.3 6.4 15.1 16.1 22.5 19.7
RTFRC 8 1/4" 30.7 14.3 18.7 16.3 6.4 19.1 16.1 22.5 23.2
RTFTC 10 1/4" 33.6 14.3 19.6 17.3 7.1 19.1 19.1 22.5 25.91
RTFUC 12 1/4" 36.1 14.3 22.1 22.9 9.6 20.6 22.1 22.5 25.91
RTFUF 12 3/8" 36.1 14.3 22.1 22.9 9.6 22.1 22.1 22.5 25.91

POSITIONABLE MALE ELBOW

Imperial Tubing
PART
NO.
'T'TUBE
OD
'T'
Pipe
Thread
Size
A B C D E
MIN
F
A/F
G
A/F
Hx H
Body
PEMC1 1/4" 7/16-20" 1.13 0.40 0.71 0.61 0.20 9/16" 9/16" 1.13 0.85
PEMC2 1/4" 9/16-18" 1.21 0.45 0.71 0.61 0.20 5/8" 11/16" 1.28 0.92
PEME6 5/16" 1/2-20" 1.20 0.40 0.74 0.65 0.24 5/16" 5/8" 1.17 0.91
PEMF2 3/8" 9/16-18" 1.27 0.45 0.76 0.67 0.29 5/8" 11/16" 1.28 0.98
PEMF4 3/8" 3/4-16" 1.38 0.51 0.76 0.67 0.29 13/16" 7/8" 1.50 1.09
PEMG4 1/2" 3/4-16" 1.49 0.51 0.87 0.91 0.42 13/16" 7/8" 1.50 1.09
PEMH5 5/8" 7/8-14" 1.57 0.57 0.87 0.96 0.51 15/16" 1" 1.72 1.17
PEMJ7 3/4" 11/16-12" 1.64 0.67 0.87 0.96 0.63 1-1/16" 1-1/8" 1.93 1.24
PEMK9 7/8" 13/16-12" 1.71 0.67 0.87 1.03 1.73 1-3/16" 1-1/4" 2 1.31
PEML8 1" 15/16-12" 2 0.67 1.05 1.24 1.89 1-3/8" 1-1/2" 2.12 1.52

POSITIONABLE MALE BRANCH TEE

Imperial Tubing
PART
NO.
'T'TUBE
OD
'T'
Pipe
Thread
Size
A B C D E
MIN
F
A/F
G
A/F
Hx H
Body
PBTMC1 1/4" 7/16-20" 1.13 0.40 0.71 0.61 0.20 9/16" 9/16" 1.13 0.85
PBTMF2 3/8" 9/16-18" 1.27 0.45 0.77 0.67 0.29 5/8" 11/16" 1.28 0.98
PBTMG4 1/2" 3/4-16" 1.49 0.51 0.87 0.91 0.42 13/16" 7/8" 1.50 1.09
PBTMJ7 3/4" 11/16-12" 1.64 0.67 0.87 0.97 0.63 1-1/16" 1-1/8" 1.93 1.24
PBTML8 1" 15/16-12" 0.2 0.67 1.05 1.24 0.89 1-3/8" 1-1/2" 2.12 1.52

POSITIONABLE MALE RUN TEE

Imperial Tubing
PART
NO.
'T'TUBE
OD
'T'
Pipe
Thread
Size
A B C D E
MIN
F
A/F
G
A/F
Hx H
Body
PRTMC1 1/4" 7/16-20" 1.13 0.40 0.71 0.61 0.20 9/16" 9/16" 1.13 0.85
PRTMF2 3/8" 9/16-18" 1.27 0.45 0.77 0.67 0.29 5/8" 11/16" 1.28 0.98
PRTMG4 1/2" 3/4-16" 1.49 0.51 0.87 0.91 0.42 13/16" 7/8" 1.50 1.09
PRTMJ7 3/4" 11/16-12" 1.64 0.67 0.87 0.97 0.63 1-1/16" 1-1/8" 1.93 1.24
PRTML8 1" 15/16-12" 0.2 0.67 1.05 1.24 0.89 1-3/8" 1-1/2" 2.12 1.52

OD CAP

Imperial Tubing
PART
NO
'T'TUBE
OD
A C D F
A/F
G
A/F
ODCA 1/8" 0.80 0.61 0.51 7/16" 7/16"
ODCB 3/16" 0.85 0.64 0.65 7/16" 1/2"
ODCC 1/4" 0.93 0.71 0.61 1/2" 9/16"
ODCE 5/16" 0.97 0.74 0.65 9/16" 5/8"
ODCF 3/8" 1.02 0.77 0.67 5/8" 11/16"
ODCG 1/2" 1.16 0.87 0.91 13/16" 7/8"
ODCH 5/8" 1.19 0.87 0.97 15/16" 1"
ODCJ 3/4" 1.25 0.87 0.97 1-1/16" 1-1/8"
ODCK 7/8" 1.35 0.87 1.03 1-1/4" 1-1/4"
ODCV 1" 1.52 1.05 1.24 1-3/8" 1-1/2"
Metric Tubing
ODCP 3 20.11 12.91 12.71 11.01 11.01
ODCQ 6 23.11 15.31 15.31 14.01 14.01
ODCR 8 24.51 16.21 16.31 14.01 16.01
ODCT 10 26.61 17.21 17.51 17.01 19.01
ODCU 12 29.11 23.01 22.91 20.61 22.01
ODCV 16 29.91 24.61 24.41 24.01 25.41
ODCW 20 34.01 26.11 25.91 30.01 32.01
ODCX 25 38.51 31.21 31.21 35.01 38.01

OD PLUG

Inch Size Tubing
PART
NO
'T'TUBE
OD
G
A/F
ODPA 1/8" 7/16"
ODPB 3/16" 1/2"
ODCC 1/4" 9/16"
ODCE 5/16" 5/8"
ODCF 3/8" 11/16"
ODCG 1/2" 7/8"
ODCH 5/8" 1"
ODCJ 3/4" 1-1/8"
ODCK 7/8" 1-1/4"
ODCL 1" 1-1/2"
Metric Tubing
ODPP 3 11.01
ODCQ 6 14.01
ODCR 8 16.01
ODCT 10 19.01
ODCU 12 22.01
ODCV 16 25.41
ODCW 20 32.01
ODCX 25 38.01

REDUCER

Reducer Imperial Tubing
PART
NO
'T'TUBE
OD
Tx
TubeOD
A C D E
MIN
F
A/F
G
A/F
RAC 1/8" 1/4" 1.43 0.61 0.51 0.10 7/16" 7/16 "
RBC 3/16" 1/4" 1.47 0.64 0.55 0.13 7/16" 1/2"
RCF 1/4" 3/8" 1.61 0.71 0.61 0.20 1/2" 9/16"
RCG 1/4" 1/2" 1.83 0.71 0.61 0.20 9/16" 9/16"
REF 5/16" 3/8" 1.66 0.74 0.65 0.26 9/16" 5/8"
RFC 3/8" 1/4" 1.64 0.77 0.67 0.20 5/8" 11/16"
RFG 3/8" 1/2" 1.92 0.77 0.67 0.29 5/8" 11/16"
RGC 1/2" 1/4" 1.78 0.87 0.91 0.20 13/16" 7/8"
RGF 1/2" 3/8" 1.85 0.87 0.91 0.29 13/16" 7/8"
RGJ 1/2" 3/4" 2.13 0.87 0.91 0.42 13/16" 7/8"
RHJ 5/8" 3/4" 2.16 0.87 0.97 0.52 15/16" 1"
RJG 3/4" 1/2" 2.16 0.87 0.97 0.40 1-1/16" 1-1/8"
RJL 3/4" 1" 2.47 0.87 0.97 0.63 1-1/16" 1-1/8"
Reducer Metric Tubing
RMQR 6 8 39.91 17.71 15.31 4.81 14.01 14.01
RMQT 6 10 40.71 17.71 15.31 4.81 14.01 14.01
RMQU 6 12 46.31 17.71 15.31 4.81 14.01 14.01
RMRT 8 10 42.01 18.61 16.21 6.31 15.01 16.01
RMRU 8 12 47.61 18.61 16.21 6.31 15.01 16.01
RMTR 10 8 43.41 19.51 17.21 7.91 18.01 19.01
RMTU 10 12 49.81 19.51 17.21 7.91 18.01 19.01
RMUT 12 10 46.71 22.01 22.81 7.71 22.01 22.01
RMUV 12 16 53.81 22.01 22.81 9.51 22.01 22.01
RMWV 20 16 57.91 22.01 26.01 12.71 30.01 32.01
RMWX 20 25 64.21 22.01 26.01 15.11 30.01 32.01
RMXW 25 20 64.61 26.51 31.31 15.11 35.01 38.11

PORT CONNECTOR

Inch Size Tubing
PART
NO
'T'TUBE
OD
H J E
MIN
PCA 1/8" 0.89 0.25 0.10
PCC 1/4" 0.98 0.38 0.20
PCE 5/16" 1.03 0.44 0.26
PCF 3/8" 1.04 0.51 0.31
PCG 1/2" 1.42 0.63 0.40
PCJ 3/4" 1.48 0.88 0.60
PCL 1" 1.90 1.13 0.81
Metric Tubing
PCQ 6 24.6 9.0 4.5
PCR 8 25.9 11.0 6.3
PCT 10 26.1 13.1 8.3
PCU 12 35.8 15.0 9.2
PCV 16 37.4 19.0 12.8
PCW 20 38.9 23.0 15.2
PCX 25 48.0 28.0 19.9

NUT

Inch Size Tubing
PART
NO
TUBE
OD
'T'
G
A/F
L
NTA 1/8" 7/16" 0.47
NTB 3/16" 1/2" 0.47
NTC 1/4" 9/16" 0.50
NTE 5/16" 5/8" 0.53
NTF 3/8" 11/16" 0.56
NTG 1/2" 7/8" 0.69
NTH 5/8" 1" 0.69
NTJ 3/4" 1-1/8" 0.69
NTK 7/8" 1-1/4" 0.69
NTL 1" 1-1/2" 0.81

Metric Tubing
PART
NO
TUBE
OD
'T'
G
A/F
L
NTP 3 11.0 11.9
NTQ 6 14.0 12.7
NTR 8 16.0 13.5
NTT 10 19.0 15.1
NTU 12 22.0 17.4
NTV 16 25.0 17.4
NTW 20 32.0 17.4
NTX 25 38.0 20.6

FRONT TEE R RULE

Inch Size Tubing
PART
NO
'T'TUBE
OD
FTA 1/8"
FTC 1/4"
FTE 5/16"
FTF 3/8"
FTG 1/2"
FTH 5/8"
FTJ 3/4"
FTK 7/8"
FTL 1"

Metric Size Tubing
PART
NO
'T'TUBE
OD
FTP 3
FTQ 6
FTR 8
FTT 10
FTU 12
FTV 16
FTW 20
FTX 25

BACK FERRULE

Inch Size Tubing
PART
NO
'T'TUBE
OD
BFA 1/8"
BFC 1/4"
BFE 5/16"
BFF 3/8"
BFG 1/2"
BFH 5/8"
BFJ 3/4"
BFK 7/8"
BFL 1"

Metric Size Tubing
PART
NO
'T'TUBE
OD
BFP 3
BFQ 6
BFR 8
BFT 10
BFU 12
BFV 16
BFW 20
BFX 25

SINGLE FERRULE

Inch Size Tubing
PART
NO
'T'TUBE
OD
SFA 1/8"
SFC 1/4"
SFE 5/16"
SFF 3/8"
SFG 1/2"
SFH 5/8"
SFJ 3/4"
SFK 7/8"
SFL 1"

Metric Size Tubing
PART
NO
'T'TUBE
OD
SFP 3
SFQ 6
SFR 8
SFT 10
SFU 12
SFV 16
SFW 20
S FX 25



Chromatograph Fittings :

Tube fittings in different sizes (1/16",1/8) are available for gas and liquid chromatography. They are made in different material and configuration.

Bored-Through Fittings :

BOred through fittings are used for connecting thermocouples or dip tubes. These connectors are avaliable in SS, Brass,Monel. Hastalloy, Titanium etc. the Root diameter of the pipe thread end of male connectors makes it impractical to bore through all size so female connectors, for instance 1/2 " Tube x1/4" NPT or 3/8" Tubex 1/4" NPT can not bere through. Please add suffix BT to order bore through fittings.

Heat Exchanger Tee :
Avaliable both in two piece (Union Tee and Bore through Reducer)and single piece (Reducing Tee) design.

Accessories
General Selection :-
The fluid media contained to flow inside the tubes and is compatibility with tube material play a main role. Stainless steel fittings should be used only with stainless steel tubing, Aluminum fittings with aluminium tubes etc. mixing of different materials is to be prohibited. The only exception is brass fittings with copper tubing.

Gas Service :-
Special care must be taken during selection of tubes for pressurised gas services. In order to achieve leak proof sealing between ferule and tube the tube material must be softer than ferrule so it will penetratein to tube.

System Pressure :-
The system pressure is another mechanical parameter for selection of material off tubes.In general, high pressure installations require strong materials such as steel or stainless steel. Copper may be used if chemical compatibility exists with the media.The higher strength of steel or stainless steel permits the use of thinner tubes without reducing the ultimate rating of the system.
Tube Material General Application Recommended Temp.Range
Ss316 High Pressure, High Temperature,
Corrosive Media
-2500C to 6000C
Carbon Steel High Pressure, High Temperature Oil,
Air, Inert Chemicals
-290C to 4250C
Copper Low temperature,Low Pressure Water,
Oil,Air,Gas
-400C to 2000C
Aluminum Low Temperature,Low Pressure Water,
Oil, Air ,Gas
-400C to 2000C
Monel 400 Sour Gas Application,
Marine Chemical Application
-1950C to 4200C
Hastelloy C - 276 Excellent Corrosion Resistance to Both
Oxidizing and Reducing Media and
Localized Corrosion Attack
-1950C to 5200C
Inconel 600 High Temprature Application With
Corrosive Media
-1450C to 6200C
Titanium Sea Water, Salt Solutions, Acidic Media -590C to 3160C
Instrumentation Fittings | Check Valve | Needle Valve | Valve Manifolds | Flanges | Quick Release Coupling | High Pressure Forged Fittings | Pressure Gauge Accessories | Forge Brancholet Fittings | Threaded Fittings | Plugs And Bushings | Thermowells | Literature
